Customizable control panel software for Yamaha PA system (for Windows)

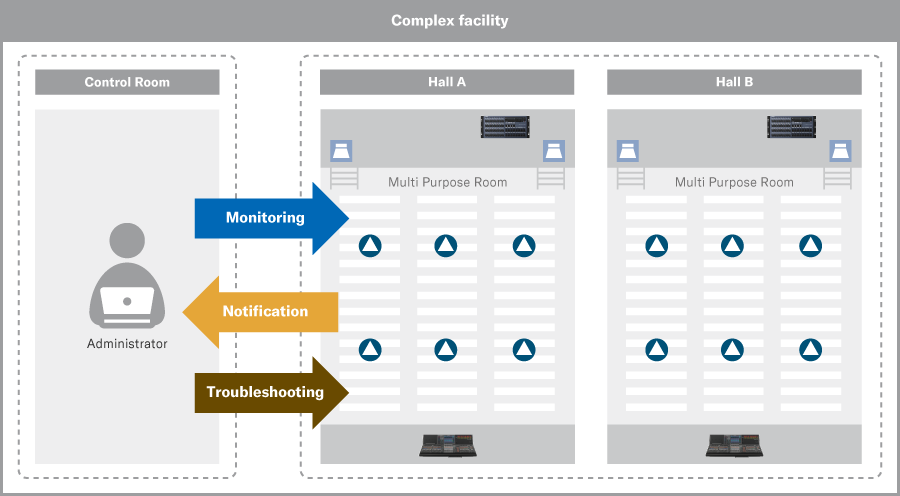

By simply dragging and dropping widgets such as faders and switches onto a screen, you can create an ideal original control panel dedicated to the applications and functions required for an installation project. No programming know-how or experience is necessary.ProVisionaire Control can control a wide range of Yamaha PA equipment and NXAMPmk2 NEXO powered TD controller. It also provides compatibility with IDK video switchers for comprehensive, convenient control of audio and video systems. In addition, Provisionaire Control has an unified monitoring functionality for Yamaha pro audio equipment, allowing in-depth management via audio networks. ProVisionaire Control stands as a unified platform solution that offers outstanding convenience and reliability for a wide range of applications.
|Signal Processor||MTX3, MTX5-D, MRX7-D|
|Digital Mixing Console, Digital Mixer||CL1, CL3, CL5, QL1, QL5
TF1, TF3, TF5, TF-RACK
|Power Amplifier*||XMV4140, XMV4140-D, XMV4280, XMV4280-D, XMV8140, XMV8140-D, XMV8280, XMV8280-D
PC406-D, PC406-DI, PC412-D, PC412-DI
|NEXO Powered TD Controller||NXAMP4x1mk2, NXAMP4x2mk2|
Rio3224-D, Rio1608-D, Ri8-D, Ro8-D
|Speaker System||VXL1B-16P, VXL1W-16P
DZR315-D, DZR15-D, DZR12-D, DZR10-D, DXS18XLF-D, DXS15XLF-D
|Video Switcher (IDK)||MSD-501, MSD-502, MSD-701, MSD-702, MSD-6203(-DAN), MSD-6204(-DAN), MSD-6206(-DAN), MSD-6208(-DAN)|
|Digital Mixing Console, Digital Mixer*||CL1, CL3, CL5, QL1, QL5|
|Power Amplifier**||PC406-D, PC406-DI, PC412-D, PC412-DI|
Intuitive and simple approach to design flexible controllers
Microphone and CD player volume faders, ON/OFF switches and other widgets can be freely arranged on the design page with drag and drop operation. ProVisionaire Control provides an easy, intuitive way to create original controllers that are ideally configured for the target installation. Multiple design pages are available so that different control panels can be provided for different audio zones and/or users, with presets and parameter settings optimized for each.
|Page Control Button|
|Direct Set Button|
|Direct Play Button||New|

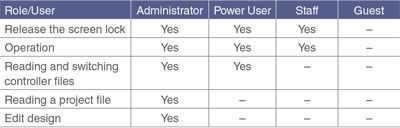

User Level Access Control
ProVisionaire Control and ProVisionaire Control KIOSK have four user level management functions. By utilizing this function, it prevents controller users from accessing the operating system so that unintended control or design changes cannot occur.

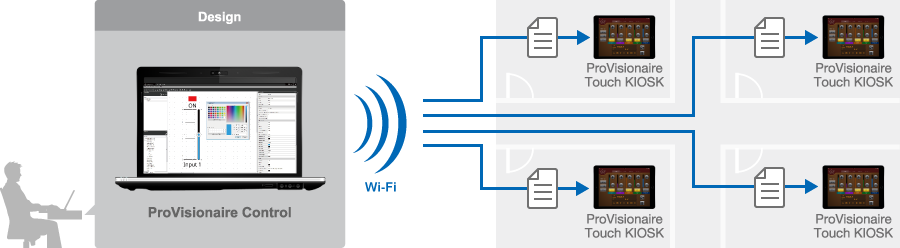

Create a layout with widgets that perform the functions of faders and switches, and assign them to the required control devices.
By using the controller function of PVC, use it as an actual controller to check the appearance and usability.
Once the system is online, all compatible devices can be controlled. The tablet device can be mounted on a wall or other fixed surface, or used handheld for maximum remote control freedom and convenience.
Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.
R Series (AD/DA): 2nd-generation
The second generation of R Series Dante-enabled I/O Racks (AD/DA) offers significant advances in sound, reliability, and visual status confirmation. Together with the CSD-R7 control surface, these I/O Racks are components of the RIVAGE PM7 Digital Mixing System. They can also be used with CL and QL series digital mixing consoles.
Available in 4 X 1300 Watts and 4 X 2500 Watts versions, the NXAMPmk2 combines advanced signal processing with state-of-the-art four channel Class D amplifiers to create a flexible, light-weight powering and control solution for NEXO loudspeaker systems.
VXL Series "P model"
Supports the Dante audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m × 10m) that demand voice clarity while imposing numerous constraints on space, and require both functionality and a sense of design.
DZR / DXS XLF Series
New flagship models of high-performance powered loudspeakers combine intelligent 96kHz DSP processor and advanced FIR-X tuning with best-in-class 2000W Class-D amplifiers. DXS XLF Series bass-reflex subwoofer is available. Our first ever Dante models offer sophisticated system integration with digital consoles.
