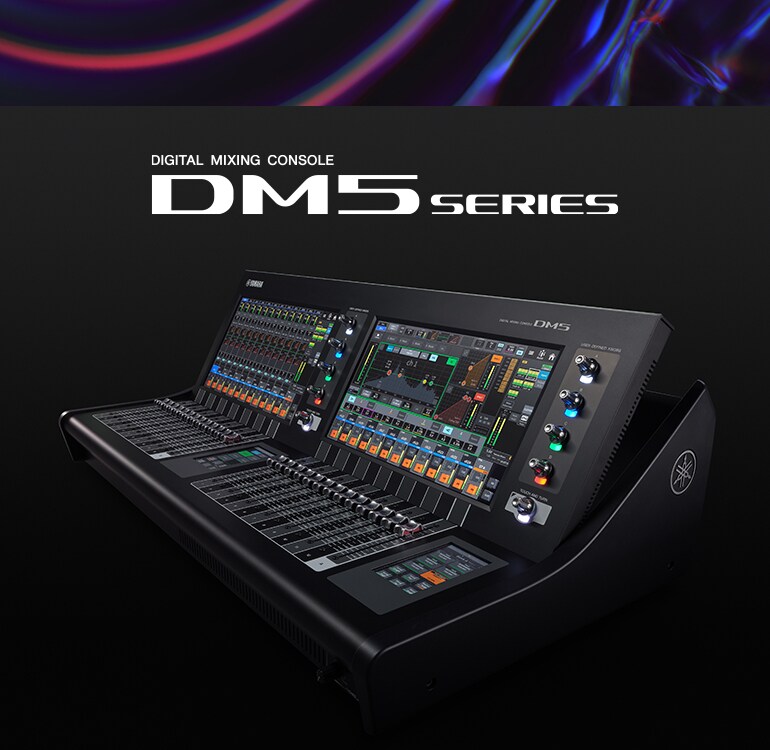

DM5 Series

Everything you need, nothing you don’t.

Dynamic labeling that adapts instantly to the task at hand for intuitive control

Angle the display for optimal viewing in any environment

Customize User Defined Keys and Fader Banks on the 4.3″ display for a more efficient, intuitive workflow.

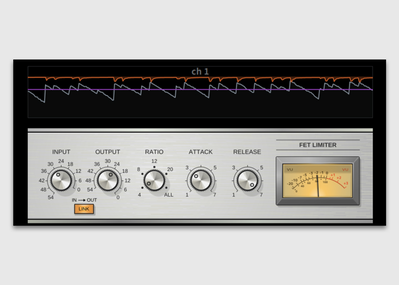

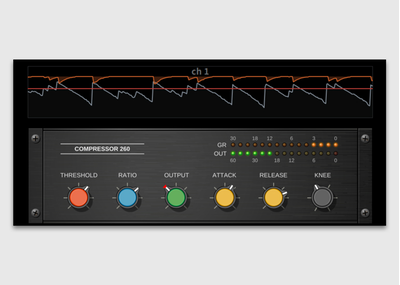

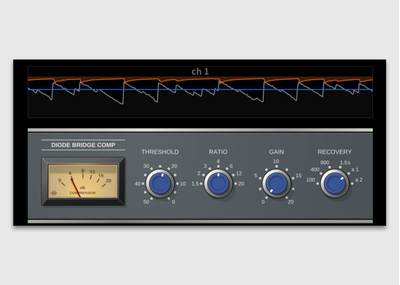

Control with Punch. Ultra-fast peak control with punch and energy.

Mix with Glue. Smooth, musical compression that adds depth and cohesion.

Shape with Impact. Versatile VCA-style compression for punchy drums, powerful instruments, and precise dynamics control.

Keep It Simple. Straightforward compression for fast setup and familiar operation.

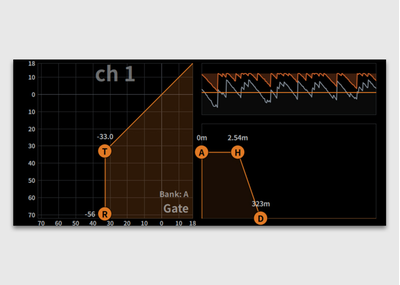

Reduce the Noise. Helps reduce unwanted noise and signal leakage.

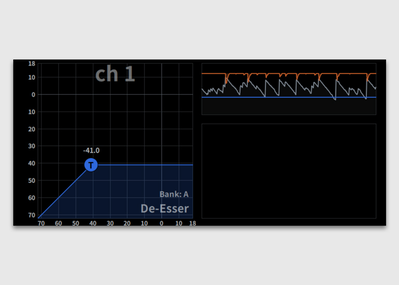

Smooth the Highs. Controls excessive sibilance while maintaining clarity.

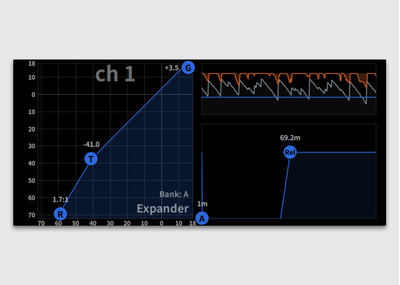

Preserve Dynamics. Reduces low-level noise while maintaining a natural response.

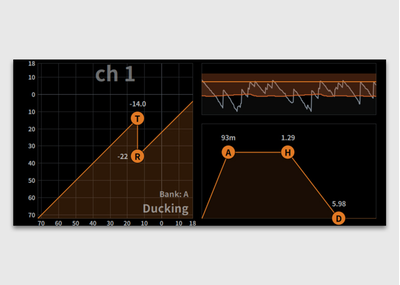

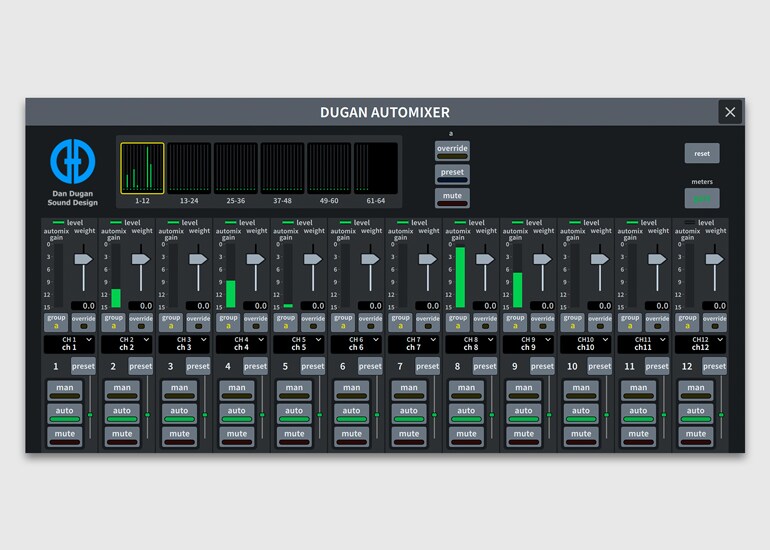

Priority Control.

Automatically creates space for priority signals.

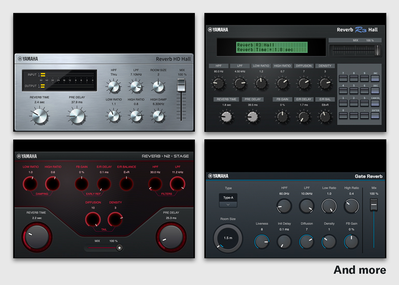

Natural reverbs, including “REV HD” and “REV R3,” add a realistic sense of depth and space to your sound. Select your preferred reverb from 13 different types.

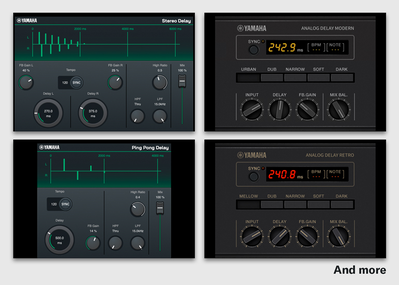

Choose from 8 types of delay to suit your needs.

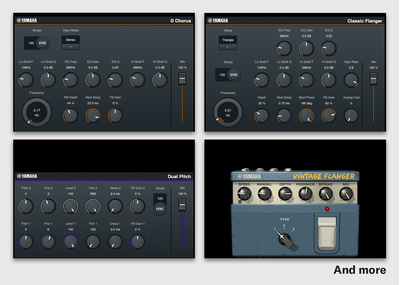

Multiple modulation effects can be used to add character to your sound.

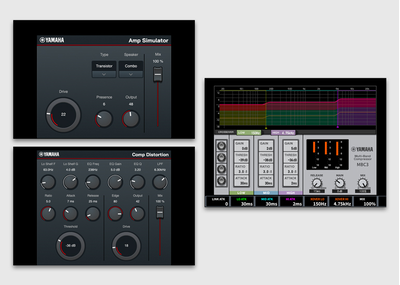

Shape your sound with saturation effects such as Amp Simulator, or refine the overall balance of your mix using the MBC3 multiband compressor.

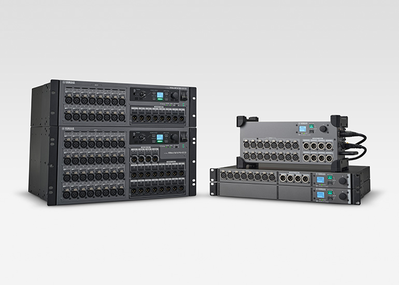

The DM5 series supports the full range of R series I/O racks, letting you choose the best fit for your needs. All are built on the same concept: capturing sound direct from the stage to provide a solid foundation for sound shaping.

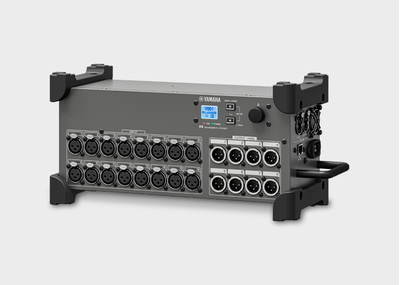

For live sound applications, the compact form of the RUio1608SB-D means that it can be placed on stage to capture live sound without getting in the way.

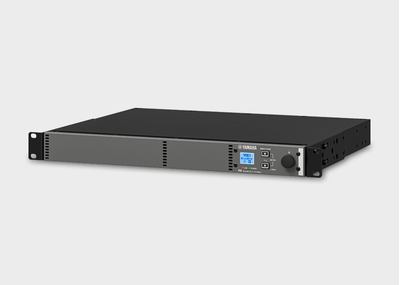

The RUio16FLX-D enables flexible assignment of analog I/O and AES Out.

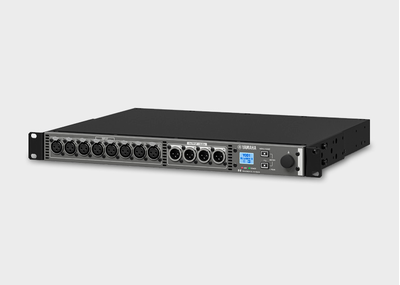

When you need just a few more inputs or outputs, the RUio0804-D is the ideal solution for a wide range of applications.

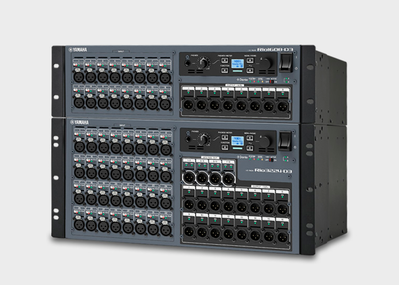

Rio-D3 models deliver high-quality audio across a wide range of applications, from large-scale tours to small live events.

New controls combine hardware reliability with software flexibility.

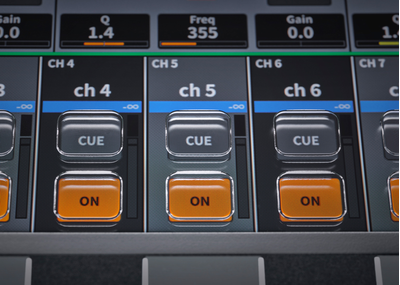

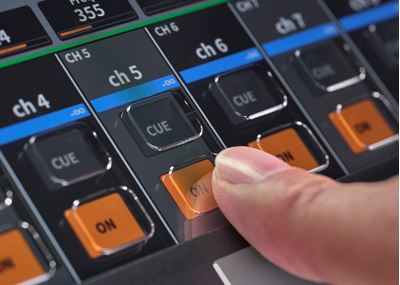

The glass keys on the display provide the tactile response of physical buttons when pressed, while dynamic labeling below the keys labeling enhances usability.

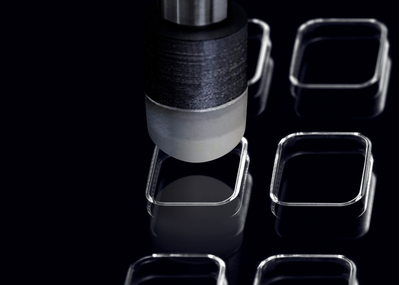

Thoroughly tested for durability, ensuring hardware reliability.

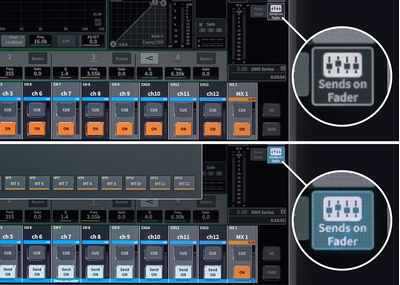

Unlike buttons with printed function names, these keys built into the display can change their labels dynamically to match their functions. For example, when Sends on Fader is active, the “ON” key label changes to “SEND ON.”

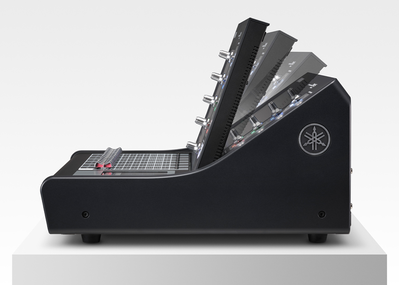

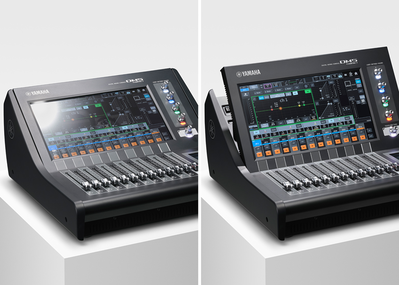

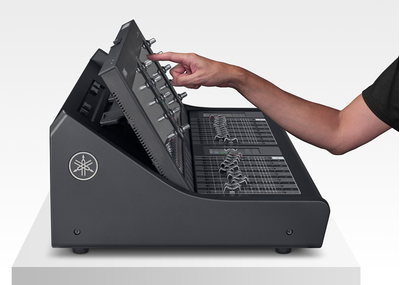

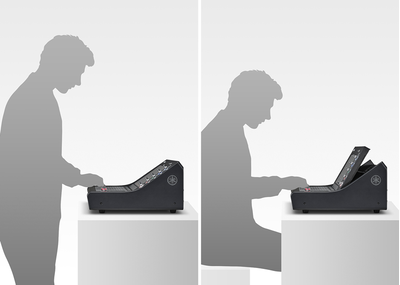

Four adjustable angles ensure that the display can always be set to the perfect position for operation.

Adjusting the display angle minimizes reflections from sunlight or overhead lighting.

You can find a comfortable viewing angle to suit your working position, whether standing or seated.

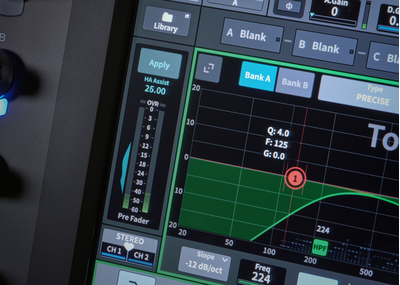

HA Assist suggests optimal head amp levels based on the input signal levels.

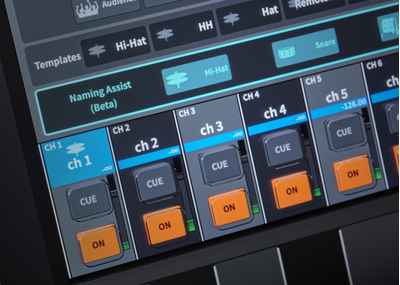

Naming Assist suggests channel names and icons based on input signal data.

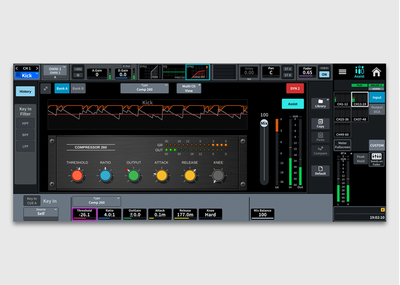

Comp Assist suggests appropriate compressor parameter values based on the audio source, helping you build the foundation of your mix.

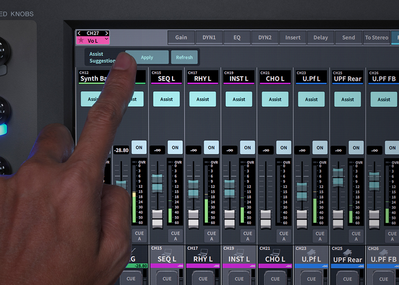

Fader Assist suggests a balance of fader levels for the channels it is assigned to.

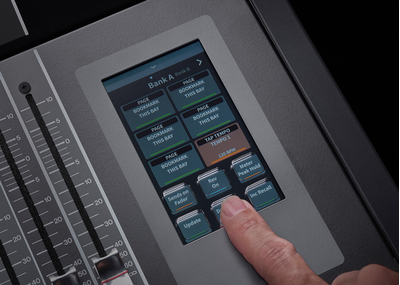

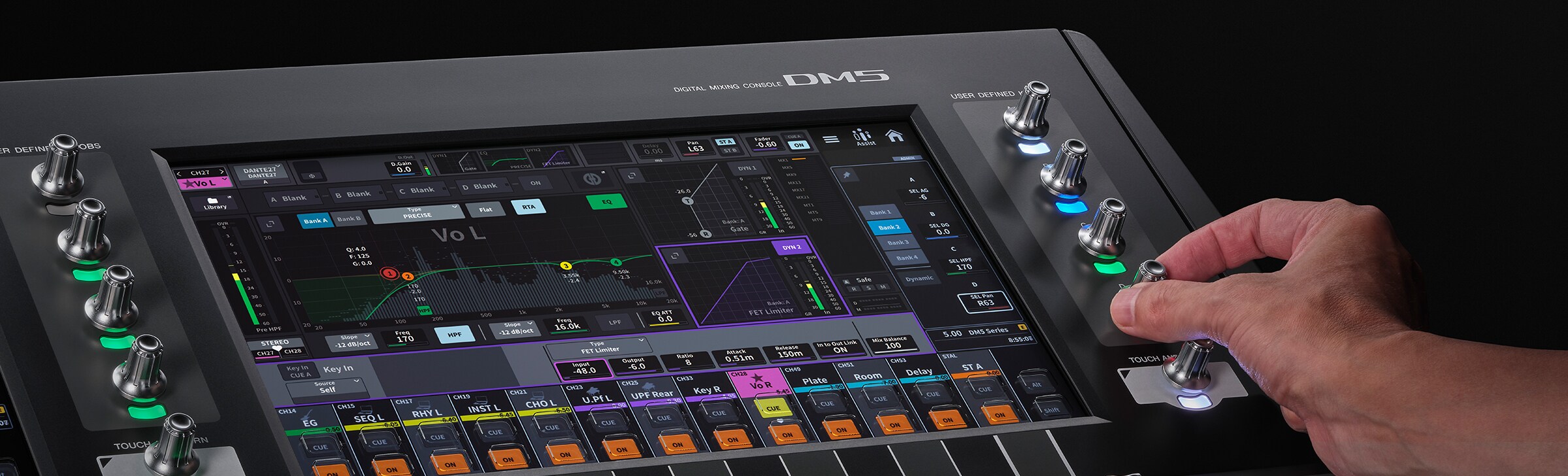

Located within easy reach of the operator, the 4.3-inch display features six glass keys that can be freely assigned parameters. The display can also be configured to display the User Defined Keys and Fader Bank Select to suit your preferences.

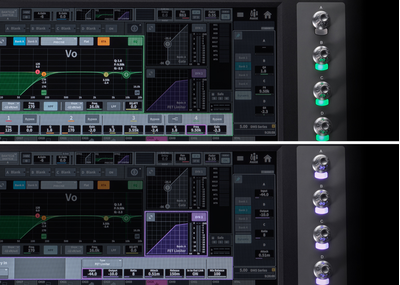

Four User Defined Knobs beside the screen provide flexible hands-on control, allowing operators to assign their preferred parameters as they like. In addition, Dynamic Mode automatically follows selections in Selected Channel View and assigns the relevant function parameters, combining intuitive operation with customizable control tailored to each operator’s workflow.

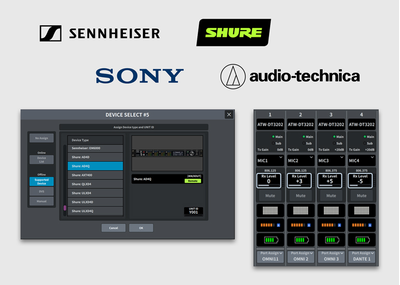

Monitoring and control are supported for some 3rd-party wireless receivers. Supported devices: (confirmation required)

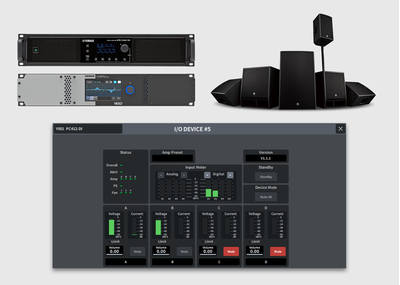

Remote control of mute and volume is supported on PC series amplifiers and other Yamaha power amplifiers and powered speakers, as well as the NEXO NXAMP.

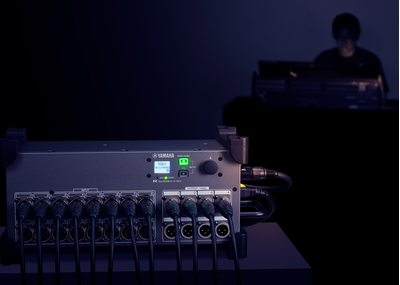

Remote control of head amps, phantom power, and other parameters is supported on the RUio1608SB-D and other Yamaha I/O devices. (The parameters that can be controlled depend on the model.)

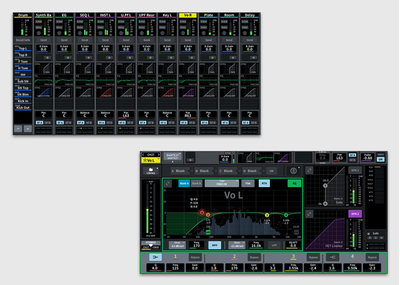

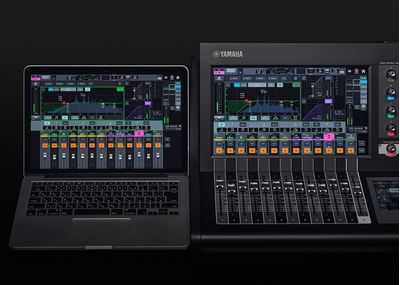

The DM5 series and DM Editor share a common GUI, ensuring quick, intuitive operation with no learning curve. Faders can also be shown on the editor app, allowing precise adjustments over a wireless connection even when far from the console.

DM StageMix offers remote control from an iPad, ideal for fine-tuning monitoring from the stage and making adjustments from different positions in the audience. Two iPads can be connected via a Wi-Fi access point connected to the console, enabling simultaneous remote operation.

The DM5 series also supports MonitorMix, an app that can be used as a personal monitoring system for performers. Access can also be password-protected, ensuring settings remain secure and allowing performers to use it with confidence.

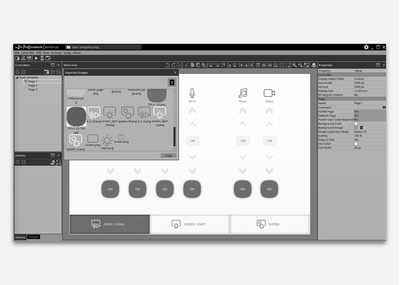

Use ProVisionaire Control PLUS to create custom controllers that bring together just the parameters you want.

In restaurants and other venues with live music, staff unfamiliar with the mixer may need to operate it, for example, to play background music (BGM) between sets. ProVisionaire Control PLUS lets you create a custom controller with just a BGM fader and a play button, simplifying operation and preventing mistakes.
