ProVisionaire Design

System design software for Yamaha PA systems

Funktioner

Programvara för integrerad design av olika typer av ljudutrustning från Yamaha

ProVisionaire Design är en programvara för Windows-operativsystem som möjliggör omfattande, intuitiv design av ljudsystem som använder kompatibla Yamaha-produkter. Den är kompatibel med ett brett utbud av Yamaha-produkter, inklusive DME Series/MRX7-D/MTX-processorer, XMV/PC-D-förstärkare, Rio/Tio-gränssnitt, PoE-högtalare, ADECIA-lösningar med mera.

ProVisionaire Design underlättar design och installation av ljudsystem genom att möjliggöra flexibel komponentlayout, signalrouting och parameterredigering i processorer med öppen arkitektur, t.ex. DME-serien och MRX7-D. Den ger också en omfattande översikt över komponenter och signalrouting i MTX-seriens processorer med fast arkitektur. Ett brett utbud av högkvalitativa ljudkomponenter som bara en ledare inom professionell ljudåtergivning kan tillhandahålla stöds, inklusive REV-X för raffinerat reverb och Dugan Auto Mixer för felfri automatiserad mixning. Den har också stöd för logiska komponenter som kan användas för att skapa styrsekvenser. ProVisionaire Design kan användas tillsammans med programvaran ProVisionaire Control för omfattande kontroll av alla projekt, från systemdesign och installation till daglig drift och förvaltning. Parametrar i ProVisionaire Design kan tilldelas ProVisionaire Control PLUS för att enkelt skapa anpassade kontrollpaneler.

Devices that Support Design

Product	Model*	ProVisionaire Design
Signal Processor	MTX3, MTX5-D
	MRX7-D
	DME7
NEXO Immersive Audio Processor	DME10
Power Amplifier	XMV4140, XMV4140-D, XMV4280, XMV4280-D, XMV8140, XMV8140-D, XMV8280, XMV8280-D
Power Amplifier	PC406-D, PC406-DI, PC412-D, PC412-DI
I/O	EXi8, EXo8
	RSio64-D
	Rio3224-D2, Rio1608-D2
	Rio3224-D3, Rio1608-D3
	Tio1608-D, Tio1608-D2
Speaker	DZR315-D, DZR315-DW, DZR15-D, DZR15-DW, DZR12-D, DZR12-DW, DZR10-D, DZR10-DW
	DXS18XLF-D, DXS18XLF-DW, DXS15XLF-D, DXS15XLF-DW
	VXL1B-16P, VXL1W-16P
	VXC2P
Microphone	RM-CG, RM-TT
Controller	ProVisionaire Control PLUS, DCP1V4S-US, DCP4S-US, DCP4V4S-US, MCP1

*There are models that are not available in some regions.

Flexible System Design

Flexible Presets

Presets can be created for linked/grouped devices in addition to individual devices, providing broader flexibility when setting up presets for different applications.

Device Grouping Enhances Setup and Operation Efficiency

Devices can be assigned to groups, allowing various types of control to be applied to the group as a whole. For example, preset recall, overall mute, synchronization, and more can be assigned to entire groups for efficient operation and management.

Fine Tuning and Efficient Workflow

ProVisionaire Design is a powerful tool for sound engineers and systems integrators. Not only does it allow detailed control of a comprehensive range of amplifier and speaker parameters, but individual channels can be linked/grouped as required, and related EQ, delay, and other parameters can be linked as well. All of this can contribute to efficient design and setup of finely tuned systems.

Flexible Audio/Control configuration

Audio configuration

ProVisionaire Design supports high-performance audio and live performance system design for a large number of audio components. In systems based around the DME7 or MRX7-D, it allows the device’s components to be freely and flexibly laid out, and internal parameters to be easily adjusted to achieve the required sonic results. Available components range from basic essentials such as Combiner, Delay, Dynamics, Effect, EQ, Filter, Meter, Matrix Mixer, Router, Source Selector, and Speaker Processor to more high-level functions such as Comp260, DCA, Dugan Automixer, REV-X and more.

Dugan Automixer
Delay Matrix
Room Combiner
AEC
Ducker
EQ
Rev-X
Comp260
DCA

Component List

Control configuration (DME7)

By using control components, you can recall parameters in sequence based on simple logic principles governed by statements such as AND, OR, COMPARE. It can be used to describe a wide range of complex relationships in a process by wiring control component and audio component. The logic function enables more complex control designs that go beyond just GPI control, allowing us to meet the detailed requirements of our users.

Button
Fader
Logic
Compare
Max/Min
Delay
Router
GPI In
GPI Out

Component List

Preparation

Offline Simulation (supports DME7)

- Audio routing for logic control setups created offline can be checked and tested without the need to actually have any devices connected.

Probe Monitoring (supports DME7)

- Two probe monitoring points can be defined.

- The signals from the two probe monitor points can be assigned to different output channels and monitored independently.

- Advanced applications of two probe monitor points to check the correlation between the processor input signal and direct microphone signal.

Yamaha ProVisionaire Design: Probe Monitoring (supports DME7)

Synchronization

- After offline checks have been carried out using the Offline Simulation and Probe Monitoring functions described above, all that remains to be done to complete the setup is to load the data into the device, significantly reducing setup time.

- The entire system can be placed online at once, or devices can be placed online individually and tested one at a time.

Yamaha ProVisionaire Design: Synchronization

Controller UI Design

An Intuitive Approach to Flexible Controller Design

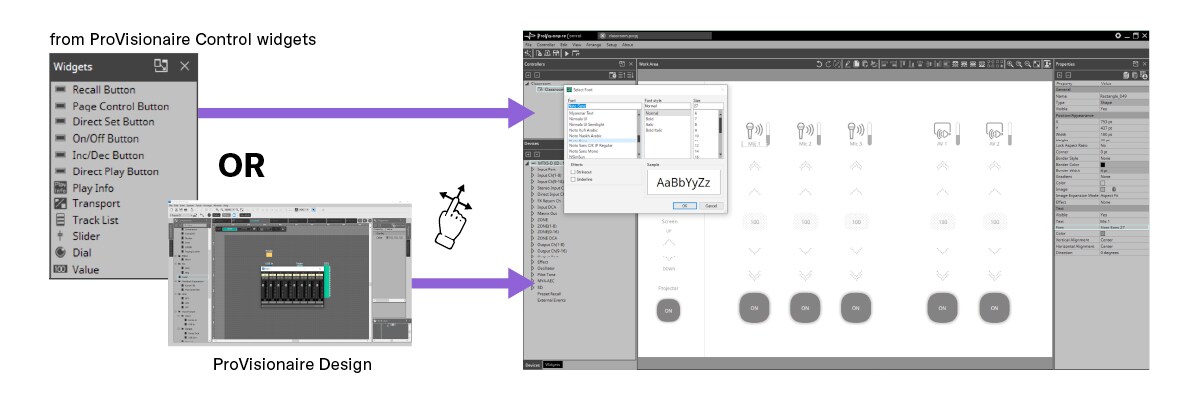

Microphone faders, ON/OFF switches, and other widgets can be freely placed and arranged on the design page by dragging and dropping from ProVisionaire Design. This provides an easy, intuitive way to create original controllers that are ideally configured for the target installation. Multiple design pages are available so that different control panels can be provided for different audio zones and/or users, with presets and parameter settings optimized for each.
