MONTAGE

Lineup

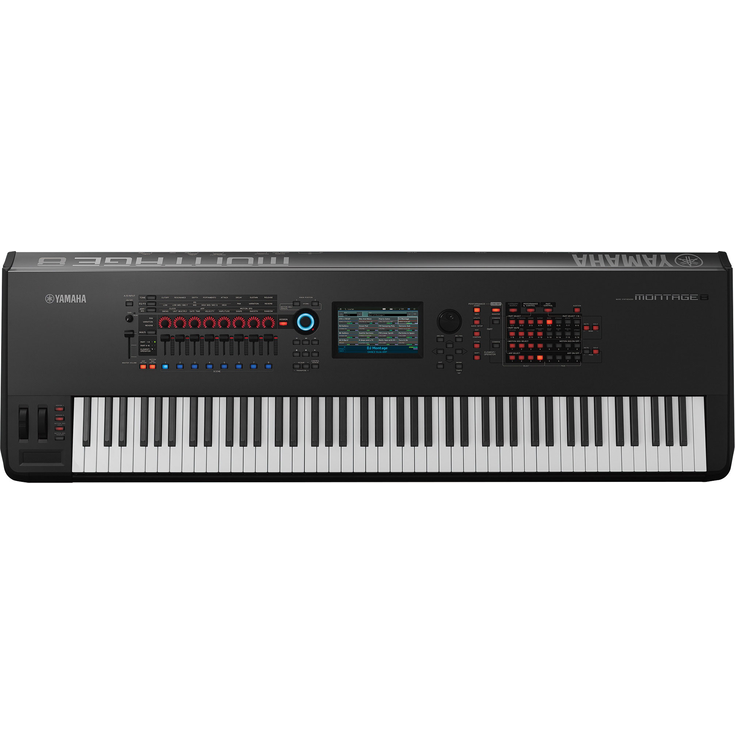

MONTAGE8

Utgången

Välkommen till den nya eran önskar företaget som gav DX och Motif till världen. Montage sätter nästa milstolpe med dynamisk, sofistikerad kontroll, massiv ljudkreation och enkelt arbetsflöde.

Registrera din produkt

MONTAGE8 WH

Utgången

MONTAGE White is a synthesizer combining sophisticated dynamic control, massive sound creation and streamlined workflow with an intense hot look. Make waves with MONTAGE White.

Registrera din produkt

MONTAGE7

Utgången

Välkommen till den nya eran önskar företaget som gav DX och Motif till världen. Montage sätter nästa milstolpe med dynamisk, sofistikerad kontroll, massiv ljudkreation och enkelt arbetsflöde.

Registrera din produkt

MONTAGE7 WH

Utgången

MONTAGE White is a synthesizer combining sophisticated dynamic control, massive sound creation and streamlined workflow with an intense hot look. Make waves with MONTAGE White.

Registrera din produkt

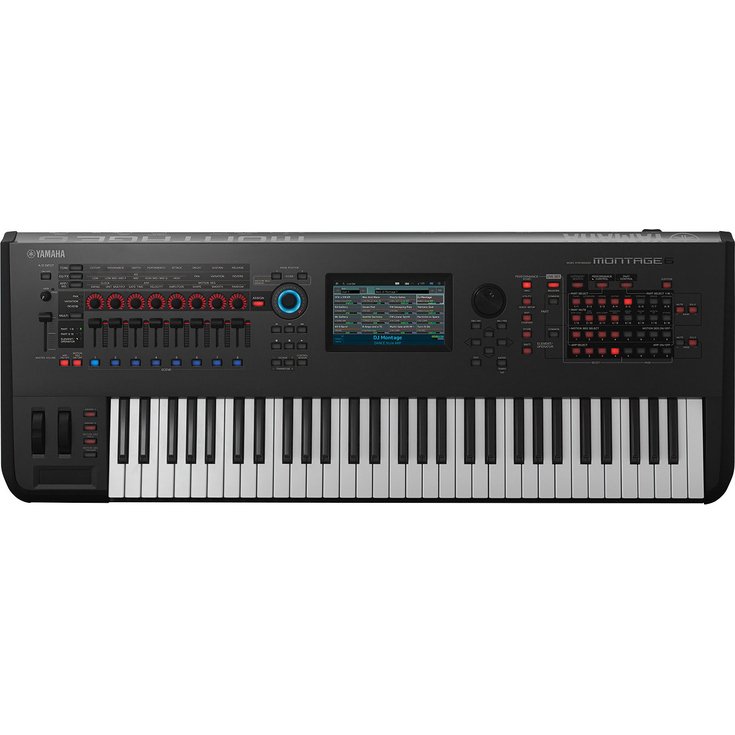

MONTAGE6

Utgången

Välkommen till den nya eran önskar företaget som gav DX och Motif till världen. Montage sätter nästa milstolpe med dynamisk, sofistikerad kontroll, massiv ljudkreation och enkelt arbetsflöde.

Registrera din produkt

MONTAGE6 WH

Utgången

MONTAGE White is a synthesizer combining sophisticated dynamic control, massive sound creation and streamlined workflow with an intense hot look. Make waves with MONTAGE White.

Registrera din produkt

Music in Motion

Music is always in motion. From the way a piano player hits a key to a orchestral crescendo to a drum groove, music always moves.
Montage introduces new way for musicians to control sound and create expression with Motion Control.

Rhythmic
MotionMotion based on rhythm
Multi-dimensional
MotionIntroduce complex sound changes optimized for each parameters and multiple parameters.

Motion Control

Motion Control puts rhythmic and multidimensional control at
the musician's fingertips for sound that moves from radical to sublime.

Super Knob

Macro control

Motion SEQ

Tempo synced control sequences

Envelope Follower

Converts audio to control

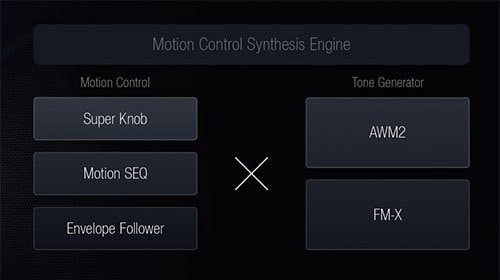

Motion Control Structure

Sound Videos

Wax And Wane

DJ Montage

Tektonic Dub

FM Linear Synth

Multi Saw MW DA

Turn It On

Funktioner

Motion Control Synthesis Engine

Motion Control Synthesis Engine unifies and controls two iconic Sound Engines: AWM2 (high-quality waveform and subtractive synthesis) and FM-X (modern, pure Frequency Modulation synthesis.) These two engines can be freely zoned or layered across eight parts in a single MONTAGE Performance.

Interact with MONTAGE Performances using Motion Control: a highly programmable control matrix for creating deep, dynamic and incredibly expressive sound. With Motion Control, you can create new sounds not possible on previous hardware synthesizers.

Please go to Motion Control page

1Sophisticated Dynamic Control

Music is expression. MONTAGE adds a new level of expression with the Motion Control Synthesis Engine. This engine allows a variety of methods to interact with and channel your creativity into finding your own unique sound.

- Super Knob

Create dynamic sound changes from radical to sublime with the Super Knob. The Super Knob can control multiple parameters simultaneously resulting in anything you can imagine.

For example: change your listening position from right in front of an instrument to in the back seat of a concert hall. Or radically change the character of a Performance from atmospheric and mellow to rhythmic and edgy.

The Super Knob can even be assigned to a second FC7 foot controller making it easy to manipulate the sound when playing with both hands.

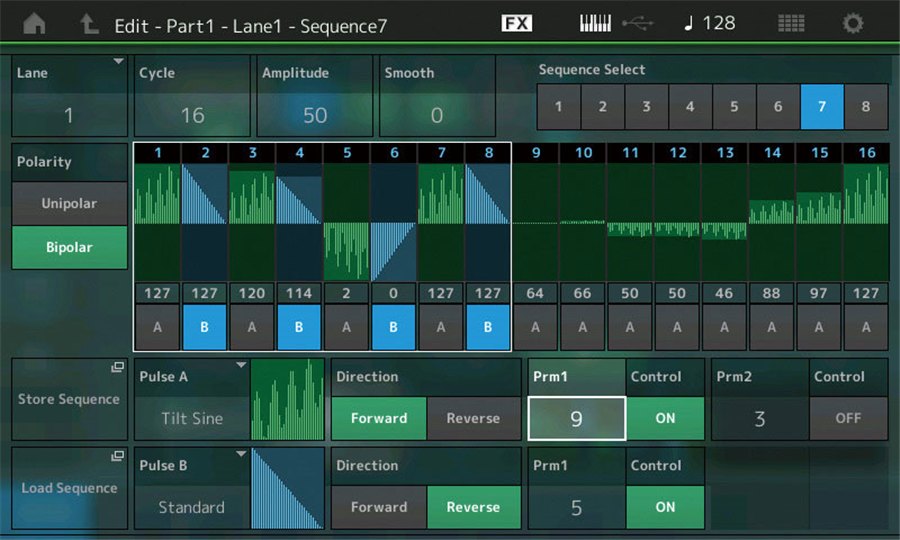

- Motion SEQ

Motion Sequences are tempo-synchronized, completely customizable control sequences that can be assigned to virtually any synthesizer parameter and provide incredible creative new ways of programming sound.

Motion Sequences also have dedicated controls on the front panel making it easy to manipulate and change in real-time, providing incredible interactivity and expression.

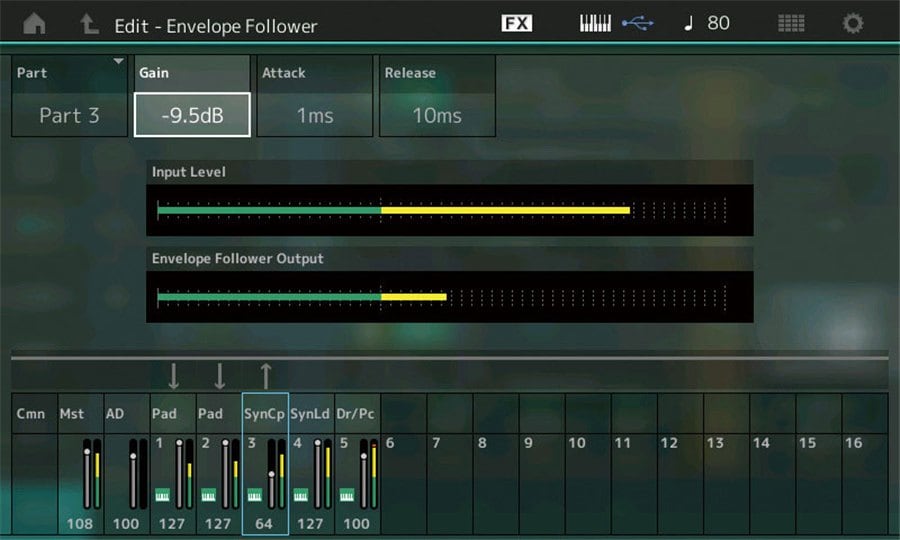

- Envelope Follower

The Envelope Follower converts audio into a control source for control of virtually any synthesizer parameter. For example, a drum loop could drive effects parameters for a cool rhythms or a vocal recording could control multiple parameters for a "talking" synthesizer. The audio can even be a "live" source through the A/D input.

2Massive Sound Creation

MONTAGE features two Iconic Sound Engines modernized for amazing sound playback and complex sound design.

- AWM2

Powered by proprietary Yamaha technology for data compression and sound playback, AWM2 allows tremendous data compression without sound quality loss for unparalleled, realistic sound reproduction.

・128-Note, Stereo polyphony

Experience rich stereo sound without halving the available number of notes.

・Waveform Capacity

MONTAGE features nearly 10 times the waveform capacity of the MOTIF XF, allowing more samples per instrument for incredibly realistic and nuanced sound.

・Integrated Flash Memory

MONTAGE includes 1.75 GB of user flash memory with high speed reading/writing for your own custom samples or synth libraries from yamahasynth.com.

- FM-X

An amazingly sophisticated pure synthesizer engine capable of producing classic ‘80s or cutting-edge, EDM sound with incredible dynamic range, power and fidelity. MONTAGE features an 8-operator FM architecture and 128-note polyphony, allowing for a massive array of sound design options.

- Content

Every instrument needs great content to inspire your creativity. MONTAGE features a huge range of incredible sounds like a brand-new Yamaha CFX Premium Grand Piano, detailed new strings and woodwinds and select content from the DX and TX family, all modernized to take advantage of the Motion Control Synthesis Engine.

[Compatibility] MONTAGE is directly compatible with Motif XF Voices. Yamaha is developing an FM converter to make it compatible with DX7 series Voices as well.

[Bösendorfer Piano] As part of the MONTAGE introduction, Yamaha is pleased to offer an incredible Bösendorfer Imperial Premium Grand Piano.

Please go to Sound Library page

- Effects

From high definition reverbs to incredibly detailed Virtual Circuit Modeling (VCM) effects, MONTAGE is loaded with DSP innovation, power and, most importantly, sound quality. Use effects like Beat Repeat, Vinyl Break or Bit Crusher to get a modern EDM sound. You can even add a compressor with sidechain for a modern "ducking" effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators. Piano players will appreciate piano-focused effects like Damper Resonance for a super-realistic piano experience and the HD reverbs that let you put yourself in any performance space.

- Pure Analog Circuit

MONTAGE features professional balanced outputs with "Pure Analog Circuit" (PAC). PAC improves the quality of signal after being converted to analog from digital for clear harmonic reproduction and even frequency response. The result is an output capable of reproducing MONTAGE's internal content expressively with power and clarity.

3Streamlined Workflow

How do you want to integrate your instrument with your system? How do you want to organize the onboard content? How do you want to interact with the instrument while you play? MONTAGE answers these questions and more with a flexible, streamlined workflow.

- USB Audio/MIDI ConnectionConnect MONTAGE to your computer with a single USB cable and capture every nuance of your creativity into your DAW. MONTAGE's powerful USB driver can send 16 and receive 3 channels of STEREO 24 bit/44.1 kHz digital audio to/from your computer or iOS device (MONTAGE is class compliant, no driver needed!), no other hardware required!
The USB connection also features full MIDI support of 16 channels.
* MONTAGE supports the sampling rate up to 192 kHz.

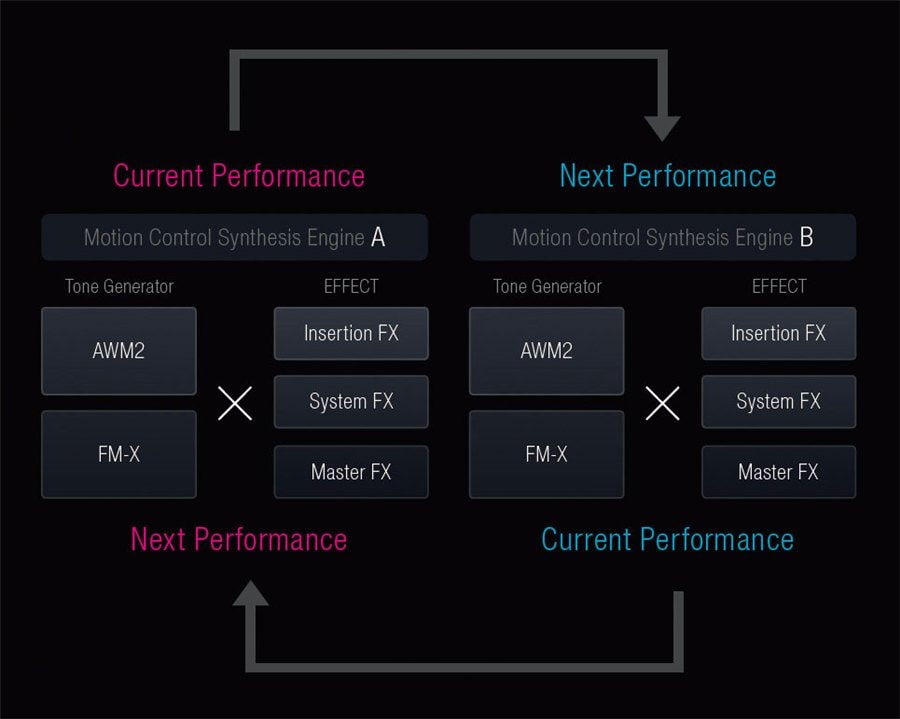

- SSS (Seamless Sound Switching)Seamless Sound Switching (SSS) lets you change performances seamlessly without any cut-off in envelope or effects. This is perfect for live performances where you end one song and start another without stopping.
* This function is only available for Performances that have a maximum of 8 parts.
- A/D InputThe A/D input processes external audio sources with your instrument's DSP. Use mics, guitars or any line source as an input and process with the internal effects.
You can even use these sources with the Envelope Follower or Sidechain for a truly unique sound.
- Physical ControlMONTAGE features a comprehensive set of physical controls for intuitive music making and sound creation.

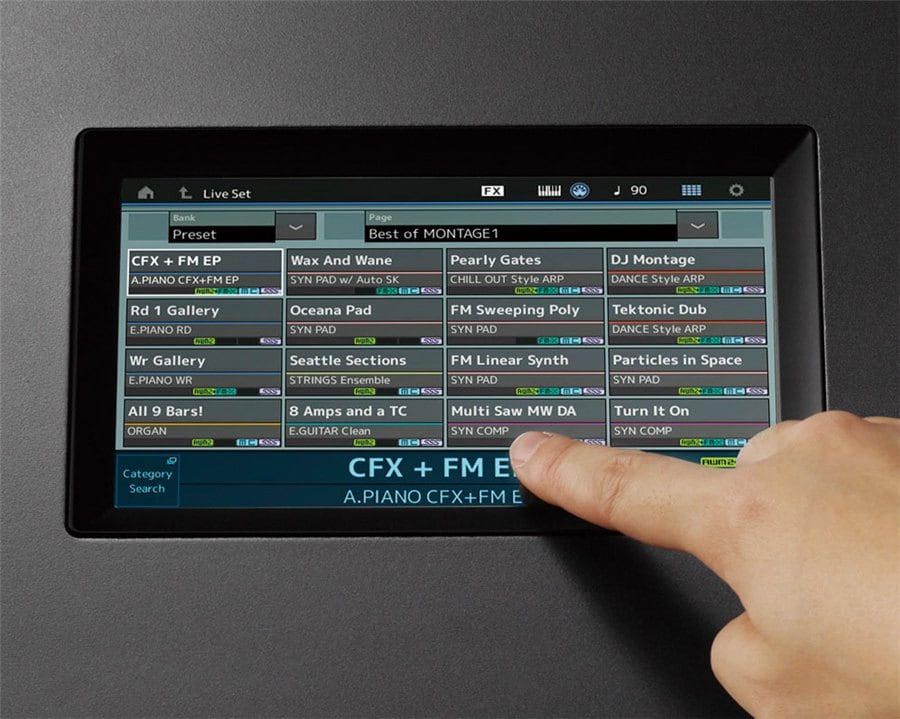

[Touch Screen] Select and change parameters directly with the new color touch screen.
[Eight Rotary Encoders and Faders with Stepladder LED] Stepladder LEDs next to the faders indicate position making it easy to see where your current mix position is.
[Keyboard Action] MONTAGE is available in three different configurations:

- MONTAGE6 and 7 feature the premium FSX semi-weighted synthesizer action with aftertouch in 61 and 76 keys respectively.

- MONTAGE8 features an 88 key, fully-weighted Balanced Hammer action with aftertouch. This provides equal resistance for each key across the keyboard and is perfect for playing a variety of instruments from acoustic piano to electric piano, synth sounds, organ and more!

- LIVE SETLive Set lets you organize your Performances however you want without copying, changing order or renaming. When a Performance is selected, you can easily register it to a Live Set. This is perfect for playing gigs or even creating your own organization scheme for Performances.

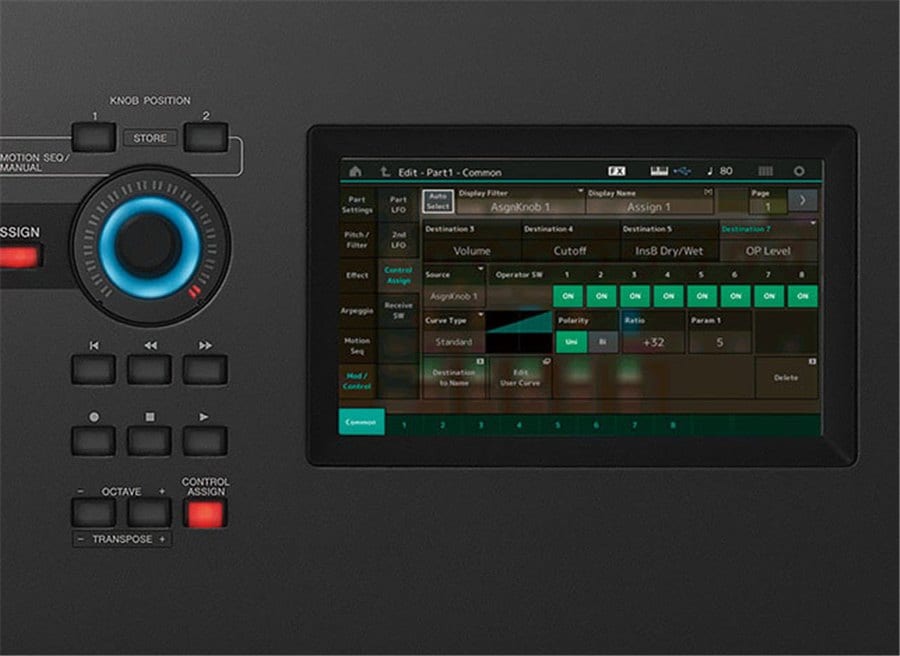

- Direct Control AssignmentDirect Control Assignment assigns controls at the touch of a button. Simply select a parameter, hit the Direct Control Assignment button and move the controller to control that parameter. It's easy!
- Cubase AI bundleMONTAGE is bundled with Cubase AI, Steinberg's professional music production application that offers integrated recording and editing.
Cubase AI 8

Appar

MONTAGE Connect

What is MONTAGE Connect?

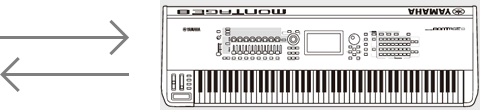

MONTAGE Connect is a convenient tool which lets you transfer data between your computer and the MONTAGE. Song data created on the MONTAGE can be transferred to your computer and the Performance data edited on the MONTAGE can be saved as a file (.X7B) on the computer.

MONTAGE Connect, based on Steinberg's VST3 technology, works as a VST3 plug-in with the Cubase series. The MONTAGE Connect also works as the same way as other VST instrument software, allowing you to save the edited settings of the MONTAGE, or use them for another project.

MONTAGE Connect also works as an AU plug-in. For AU compatible DAW software, refer to the separate Release Notes.

It can also be used as standalone software.

MONTAGE Connect requires

Latest MONTAGE Firmware

Yamaha Steinberg USB Driver V1.9.10 for Mac or later

Yamaha Steinberg USB Driver V1.9.9 for Windows or later

Transfer / Recieve bulk automatically
*When Auto Sync = ON

*All transfer operations are available only when MONTAGE Connect (on the computer) and the MONTAGE are properly connected via USB (ONLINE status).

Automatically stored to DAW project file
Automatically recalled when the file is opend

Just drag-and-drop to Import Song data from MONTAGE to DAW

FM Converter for MONTAGE

The FM Converter Web App provide a mechanism for MONTAGE owners to convert their legacy FM libraries and onboard legacy product content to MONTAGE native User File Format.
